    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23

    Ask Lasest Price
    Brand Name : Octavia
    Model Number : MR-JB510
    Certification : CE, FCC, RoHS, etc.
    • Product Details
    • Company Profile

    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23

    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23


    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23

    We created a series of infrared band pass filters ,.We also accept the custom made.

    JB510

    Specification:

    Diameter:8MM

    Thickness:2MM

    Dimension Tolerance:+/-0.15mm

    Thickness Tolerance: +/-0.15mm

    Surface Quality: 40-20

    Clear Aperture: >90%


    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23

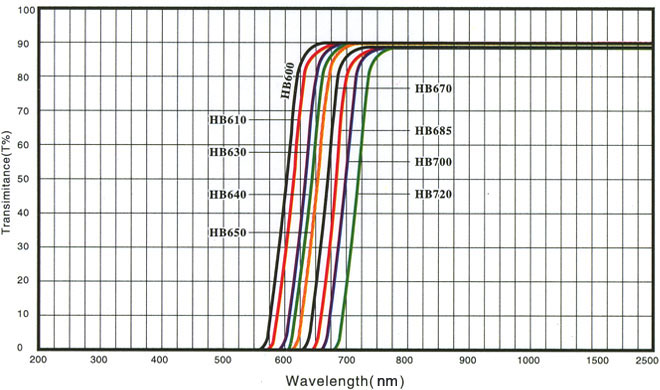

    Other iterms:

    Part NumberDiameter(mm)
    Thickness
    (mm)
    λtj
    (nm)
    λ0
    (nm)
    Tλ0
    (%)
    K
    LOHB600
    25.4
    2
    600 ± 10
    680
    ≥88.7
    ≥1.2
    LOHB610
    25.4
    2
    610 ± 10
    680
    ≥88.7
    ≥1.2
    LOHB630
    25.4
    2
    630 ± 10
    700
    ≥88.7
    ≥1.2
    LOHB640
    25.4
    2
    640 ± 10
    720
    ≥88.7
    ≥1.2
    LOHB650
    25.4
    2
    650 ± 10
    720
    ≥87.5
    ≥1.0
    LOHB670
    25.4
    2
    670 ± 10
    750
    ≥87.5
    ≥1.0
    LOHB685
    25.4
    2
    685 ± 10
    800
    ≥83.6
    ≥0.8
    LOHB700
    25.4
    2
    700 ± 10
    800
    ≥79.8
    ≥0.8
    LOHB720
    25.4
    3
    720 ± 10
    800
    ≥80.0
    ≥0.8
    LOHB76025.42760± 10850
    ≥83.6
    ≥0.6
    LOHB80025.42800± 10900
    ≥83.6
    ≥0.5
    LOHB83025.42830± 10930
    ≥83.6
    ≥0.5
    LOHB85025.42850± 10950
    ≥80.0
    ≥0.5
    LOHB93025.42930± 101050
    ≥80.0
    ≥0.2

    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23


    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23

    Diameter 8MM JB510 Long Wavelength Band Pass Filter/ZAB25/ZB1/QB5/QB23
