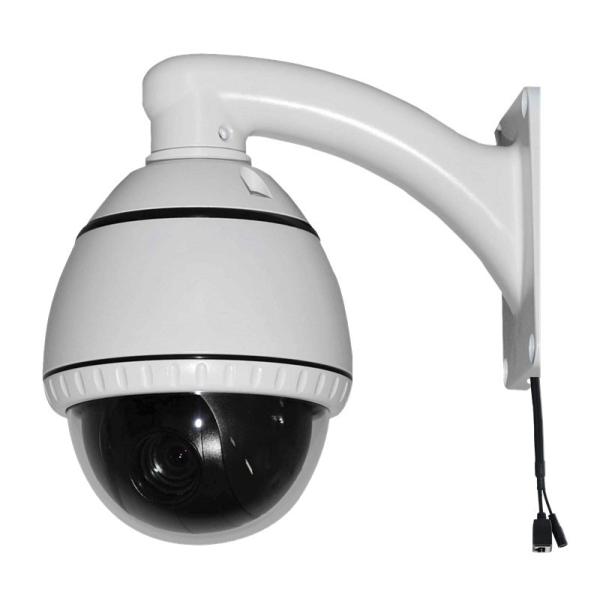

HD SDI Camera/Mini PTZ Camera

Ask Lasest Price
Brand Name :	TG Security
Certification :	CE, FCC, RoHS
Model Number :	HMD310
Delivery Time :	3-7days
Payment Terms :	T/T in advance, payapl, L/C
Supply Ability :	100000pcs/month

Add to Cart

Product Details
Company Profile

HD SDI Camera/Mini PTZ Camera

TG Security Technology Co., Ltd.

5/F Building 8, No.14 ChuangYe Road, Shilong Community, Shiyan Town,

Bao'an district, Shenzhen, Guangdong, China.

Tel: +86-755-2601 8098 Fax: +86-755-2601 8098 ext 831

www.tg-cctv.com jackey@tg-cctv.com

HD SDI Camera(PTZ)

1/3″CMOS, 720P, 10X Zoom

Features:

1. 1/3'' Sony cmos, 1.3Mega, HD(720P & 1080P), Progressive scan

2. 10x zoom lens, high definition, IRCUT auto switch(D/N)

3. Auto slow shutter, 2D noise reduction

Zoom Camera

Resolution

720P

1080P

Model

FTZ10H72

FTZ10H108

Communication

RS232

Connection

LVDS-30p(Compatible 6300)

Protocol

HITACHI / SONY VISCA

Sensor

1/3" CMOS

Effective Pixel

1.3Mega 1280(H)X 720(V)

2.1Mega 1920(H)X 1080(V)

Scan

Progressive Scan

Light

Color/Black and White/Auto

Synchronization

Internal Synchronization

Video output

Digital Singal

S/N Rate

≥50dB(AGC OFF)

Lens

IRCUT

Double IRCUT auto switch

Zoom Lens

10X F/2 f=5mm～50mm

FOV

H:51.8°(W)～5.86°(T) V:39.1°(W)～4.4°(T)

Parameter

Explosion

Auto/Manual

White Balance

Auto/Manual, Indoor/Outdoor

Focus

Auto/Manual

AGC

Auto/Manual


Auto/Color/B & W/Negative

Back Light Compensation

On/Off

Mirror

Support(Horizontal, Vertical Mirror)

Image Rollover

Support

WDR

Digital Wide Dynamic

Noise Reduction

2D Noise Reduction

Shutter

1/30s~1/10,000s

Compare

Adjustable

Saturation

Adjustable

Fog-proof

Support

Edge illumination compensation

Support

Others

Size

38.6(W)* 41(H)* 64.6(L) mm

Temp/Humidity

﹣10℃～50℃,10％RH～60％RH

Power input

DC 12V±10%

Comsumption

4W MAX

Net Weight

100g

Speed Dome
Operation parameter
OSD menu	English/Russian
Preset position	128
Swing	8 swings
Tour	4 tours(16 action entities per tour)
Pattern	4 patterns
Alarm	Support 4 input,(Default not include)
Private masking	8 zones
Address range	0-255
Communication	RS 485
Baud rate	2400/4800/9600/19200
Protocol	Pelco-P/D,or others customized
Leisure action	Home place/Swing/Tour/Pattern
Device title	Display ON/OFF
P/T position	Display ON/OFF
Temperature info	Display ON/OFF
Machine Parameter
Pan range	0°-360°continuously
Pan speed	0.1°--300°/S
Tile range	0°-180°auto flip on/off
Tile speed	0.1°-300°/S
Presision	0.05°
Others
Housing	Aluminum alloy,vandal proof housing
Work temp	-30℃-50℃
Dimension	Dome:∮107.7mm Housing:∮128X187(H)mm
Rate Power	DC12V/1.3A
Package Size	210mmX210mmX210mm
Weight	2.2kg
Installtion	Outdoor and Indoor installation
